Vertical indirect-fired domestic hot water storage tank of high-grade stainless steel.
For domestic hot water heating applications which utilize hot water heating boilers.
Suitable for heating systems with:
- max. working pressure on heat exchanger side up to 220 psig at 392°F / 200°C
- max. working pressure on DHW water side of up to 150 psig at 210°F / 99°C
Standard Equipment:
DHW tank with pre-installed thermal insulation, NPT connections and installation fittings c/w temperature and 150 psig pressure relief valve,
thermometer, white epoxy-coated sheet steel casing, and adjustable feet.
Standard Warranty:
In residential applications, limited lifetime warranty for heat exchanger coil and tank, and 2 year warranty for insulation jacket,
controls, parts and accessories. In commercial applications, limited 10 year warranty for heat exchanger coil and tank,
and 2 year warranty for insulation jacket, controls, parts and accessories. See
warranty sheet for details.
Certifications and Listings:
CSA, AHRI
| Storage capacity |
42 |
USG |
160 |
L |
| Recovery rates *1 |
| with a DHW temperature increase from 50 to 140°F |
With supply flow rate of 22 GPM (5.0 m³/h) |
| (10 to 60°C) and a heating water supply temperature of... |
| 194°F / 90°C |
137
182 |
MBH
GPH |
40
693 |
kW
L/h |
| 176°F / 80°C |
108
143 |
MBH
GPH |
32
544 |
kW
L/h |
| 158°F / 70°C |
76
101 |
MBH
GPH |
22
383 |
kW
L/h |
| Recovery rates *1 |
| with a DHW temperature increase from 50 to 140°F |
With supply flow rate of 13.2 GPM (3.0 m³/h) |
| (10 to 60°C) and a heating water supply temperature of... |
| 194°F / 90°C |
133
176 |
MBH
GPH |
39
668 |
kW
L/h |
| 176°F / 80°C |
105
139 |
MBH
GPH |
31
527 |
kW
L/h |
| 158°F / 70°C |
75
98 |
MBH
GPH |
22
372 |
kW
L/h |
| Recovery rates *1 |
| with a DHW temperature increase from 50 to 140°F |
With supply flow rate of 8.8 GPM (2.0 m³/h) |
| (10 to 60°C) and a heating water supply temperature of... |
| 194°F / 90°C |
127
170 |
MBH
GPH |
37
642 |
kW
L/h |
| 176°F / 80°C |
100
134 |
MBH
GPH |
29
507 |
kW
L/h |
| 158°F / 70°C |
71
95 |
MBH
GPH |
21
360 |
kW
L/h |
| Recovery rates *1 |
| with a DHW temperature increase from 50 to 140°F |
With supply flow rate of 4.4 GPM (1.0 m³/h) |
| (10 to 60°C) and a heating water supply temperature of... |
| 194°F / 90°C |
113
150 |
MBH
GPH |
33
570 |
kW
L/h |
| 176°F / 80°C |
90
120 |
MBH
GPH |
26
454 |
kW
L/h |
| 158°F / 70°C |
65
86 |
MBH
GPH |
19
327 |
kW
L/h |
AHRI Certified Performance Rating *2 |
| Heating input |
119 |
MBH |
35 |
kW |
| Boiler supply water temperature |
180 |
°F |
82 |
°C |
| Heating supply flow rate |
14 |
GPM |
53 |
L/min |
| First draw |
34 |
USG |
128 |
L |
| First hour rating |
223 |
GPH |
844 |
L/h |
| Continuous draw rating |
189 |
GPH |
715 |
L/h |
| Standby heat loss |
0.8 |
°F/h |
0.4 |
°C/h |

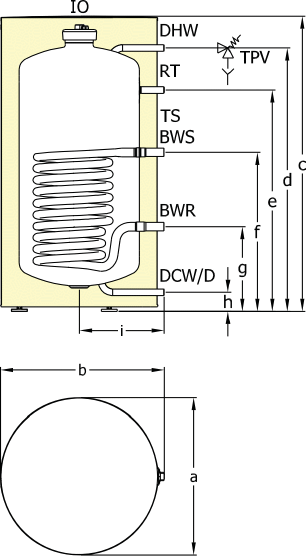

| DHW Tank Side and Top Views |
 |
Dimensions
| a Ø |
25 in. |
634 mm |
| b |
26 in. |
661 mm |
| c |
47 in. |
1190 mm |
| d |
42 in. |
1062 mm |
| e |
33½ in. |
850 mm |
| f |
25¼ in. |
642 mm |
| g |
13½ in. |
342 mm |
| h |
3 in. |
77 mm |
| i |
13½ in. |
344 mm |
|
Legend
| BWR |
Boiler water return |
| BWS |
Boiler water supply |
| D |
Drain |
| DCW |
Domestic cold water |
| DHW |
Domestic hot water |
| IO |
Inspection and clean-out opening |
| RT |
DHW recirculation tapping |
| TPV |
Temperature and pressure relief valve |
| TS |
Clamp for tank temperature sensor or temperature controller and thermometer sensor. |
|
|

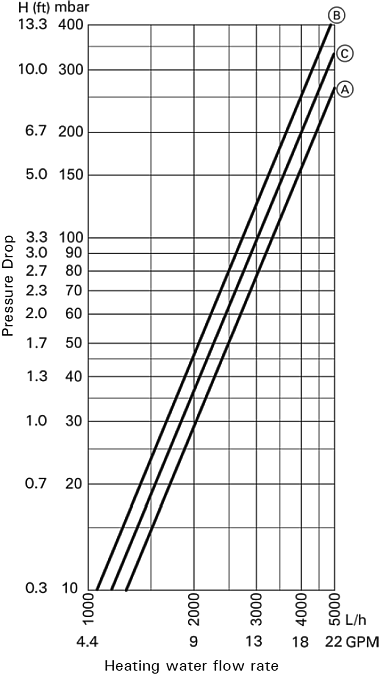

| Pressure Drop on Heating Water Side (Primary Circuit) |
 |
Legend
|

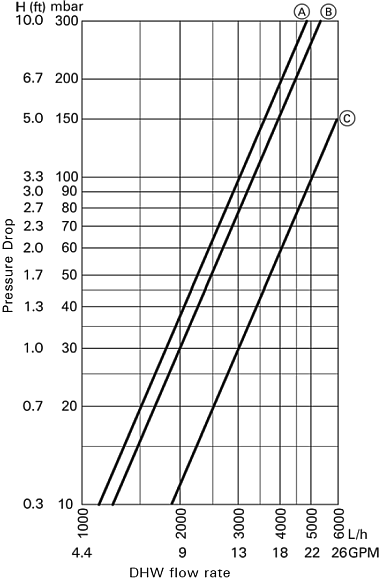

| Pressure Drop on Domestic Hot Water Side (Secondary Circuit) |
 |
Legend
|
| Valve Side View |
Drawing courtesy of Watts
|
Dimensions
| A |
1.16 in. |
40 mm |
| B |
3.17 in. |
81 mm |
| D |
1.19 in. |
30 mm |
| T |
4.00 in. |
100 mm |
|
Technical information subject to change without notice.
Viessmann reserves the right to correct errors in graphics, files, text and technical data.
Some product may not be exactly as illustrated.
Viessmann will not be held liable, financially or otherwise, for product changes, discontinuations or delays.
